KEY FEATURES
- Supercardioid polar pattern rejects ambient noise and distortion.
- -10dB Pad switch provides added headroom and eliminates peak distortion.
- A bass roll off switch minimizes low frequency noise and hum.
DESCRIPTION

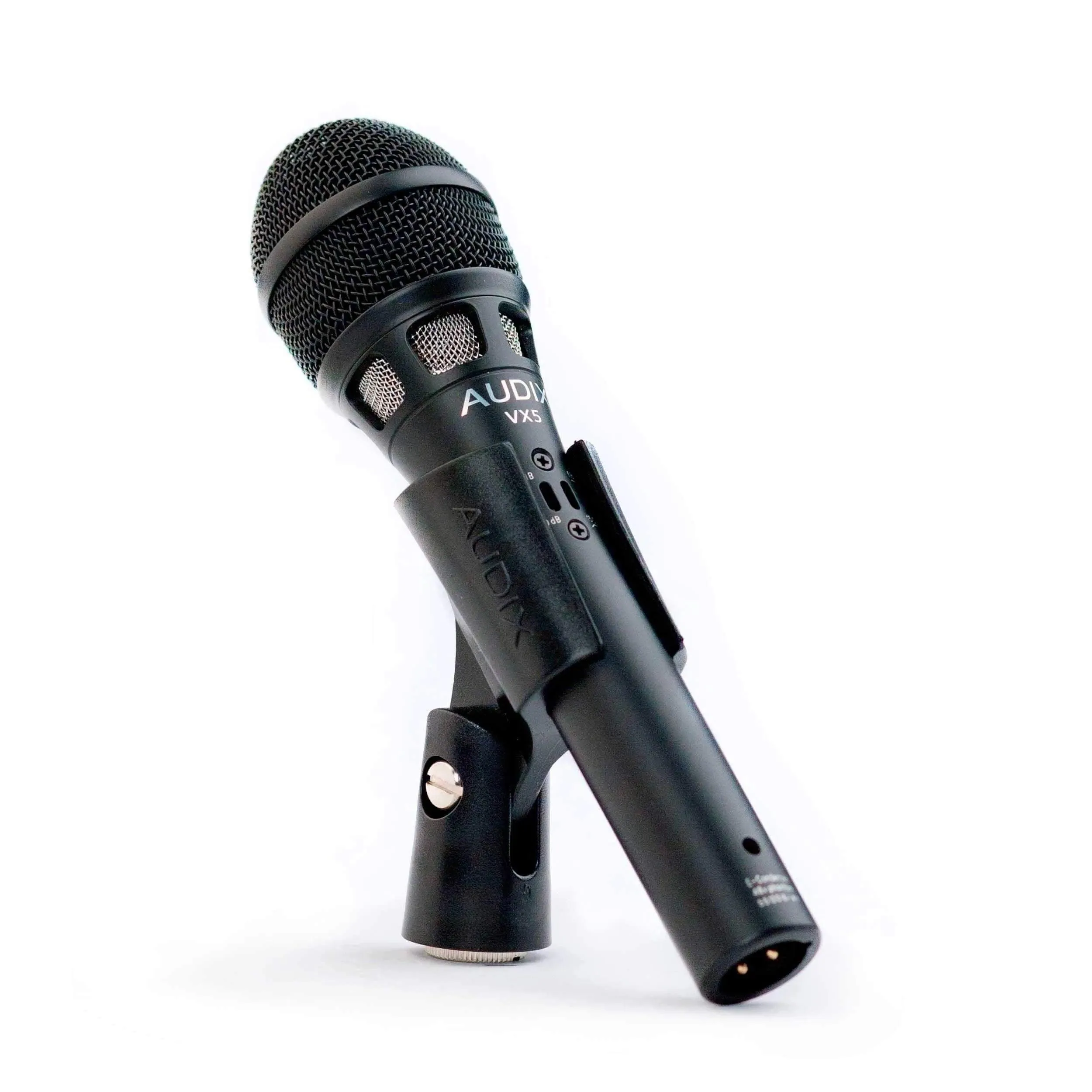

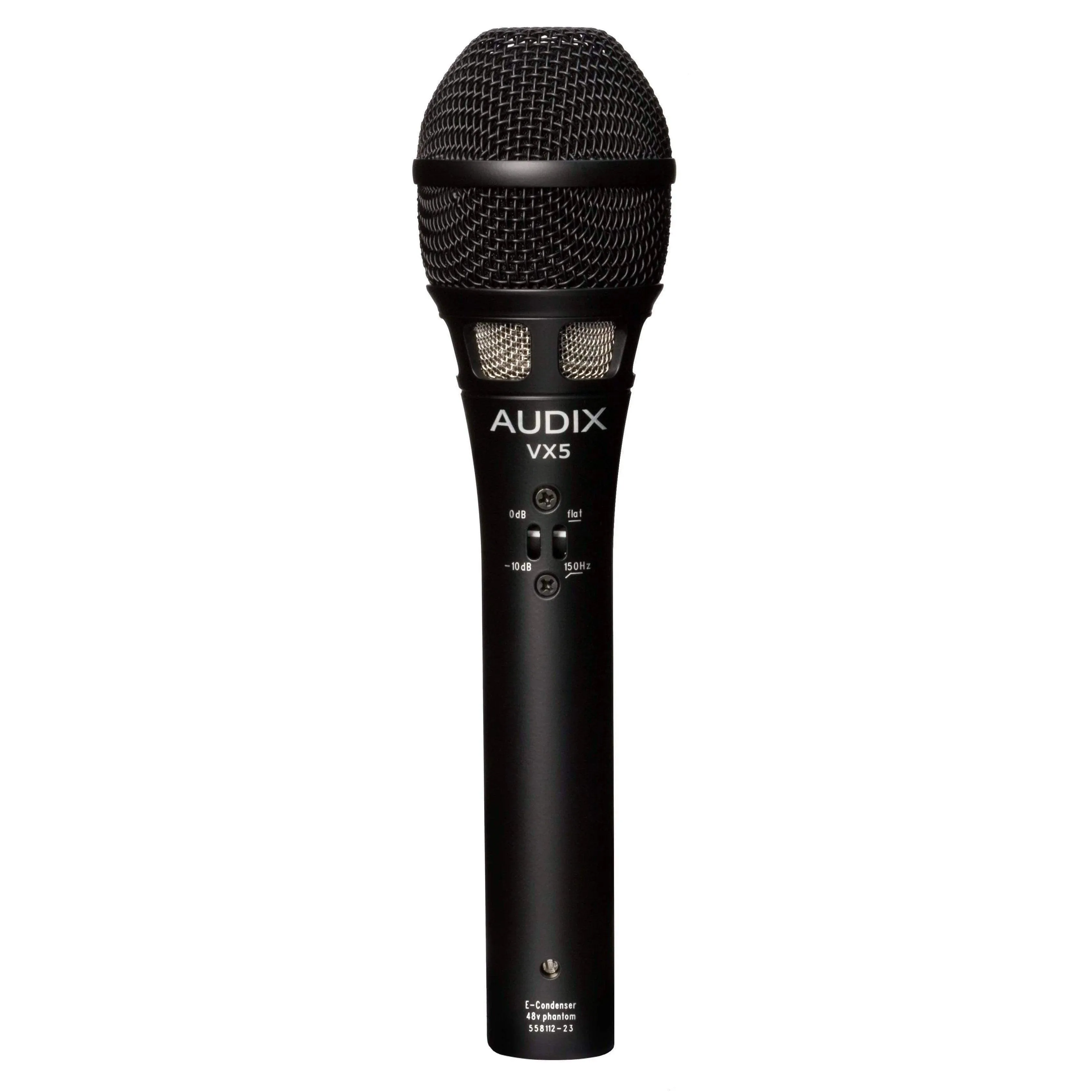

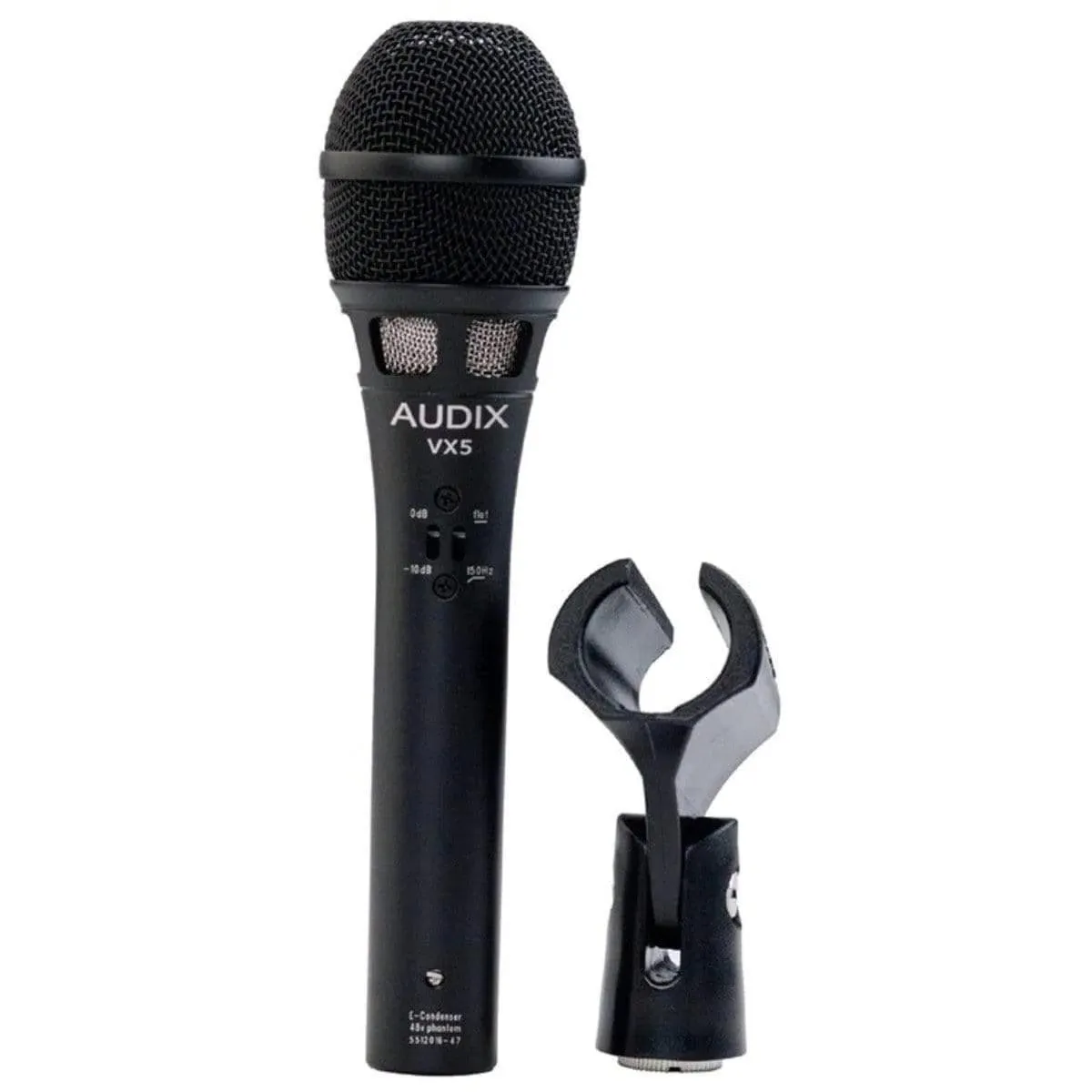

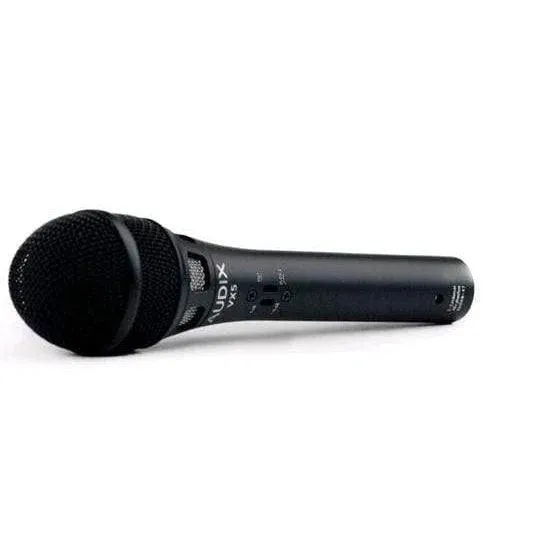

The VX5 is a multi-purpose, professional vocal condenser microphone designed for live, studio and broadcast applications. With an ability to duplicate studio-quality sound on stage, the VX5 has a smooth and accurate frequency response, resistance to feedback and handles very high SPLs without distortion. Designed with a tight and uniformly controlled super-cardioid polar pattern, the VX5 helps isolate vocals from the rest of the stage. Other features are a 14 mm gold vapor diaphragm, an acoustically ported steel mesh grill with a multi-stage pop filter, and a -10 dB pad and bass roll-off filter. The VX5 will handle SPLs in excess of 140 dB (with pad and roll-off engaged) and will provide over 20 dB of ambient noise rejection on live stages. In addition to vocal applications, the VX5 is designed to capture instruments such as guitars, woodwinds, brasses, percussion toys, drum overheads, hi-hats, and pianos. The VX5 requires 18 - 52 V phantom power.
SPECIFICATIONS
| Finish | Black satin finish |
| Frequency Response | 40Hz - 16.5kHz ( /-3dB) |
| Impedance | 150 ohms |
| Max SPL | 140dB (with -10 pad) |
| Phantom Power Requirements | Requires 48V phantom power |
| Polar Pattern | Supercardioid |
| Sensitivity | @1k 5 mV/Pa |
